Edges with button in the center
In nocode editor user interfaces it’s common to have some way of removing edges.
Removing an edge itself is an easy task, that can be done using the
removeEdge
method.
canvas.removeEdge("edge-1");
The challenge is to add some interactive element in the center of an edge to handle click events that trigger edge removal.
This can be done using another edge decorator, but first we need to create a function that would generate an interactive element. As a basis for a remove button, you can use this implementation:
const createRemoveEdgeButton = () => { const group = document.createElementNS("http://www.w3.org/2000/svg", "g"); group.classList.add("remove-button"); const circle = document.createElementNS( "http://www.w3.org/2000/svg", "circle", ); circle.setAttribute("cx", "0"); circle.setAttribute("cy", "0"); circle.setAttribute("r", "7"); circle.setAttribute("fill", "var(--remove-background)"); circle.setAttribute("stroke", "var(--remove-color)"); const path1 = document.createElementNS("http://www.w3.org/2000/svg", "path"); path1.setAttribute("d", "M -3 -3 L 3 3"); path1.setAttribute("stroke", "var(--remove-color)"); const path2 = document.createElementNS("http://www.w3.org/2000/svg", "path"); path2.setAttribute("d", "M 3 -3 L -3 3"); path2.setAttribute("stroke", "var(--remove-color)"); group.appendChild(circle); group.appendChild(path1); group.appendChild(path2); return group; };
And the corresponding CSS:
.remove-button { pointer-events: auto; cursor: pointer; --remove-color: #e88b74; --remove-background: white; } .remove-button:hover { --remove-color: #f93707; }

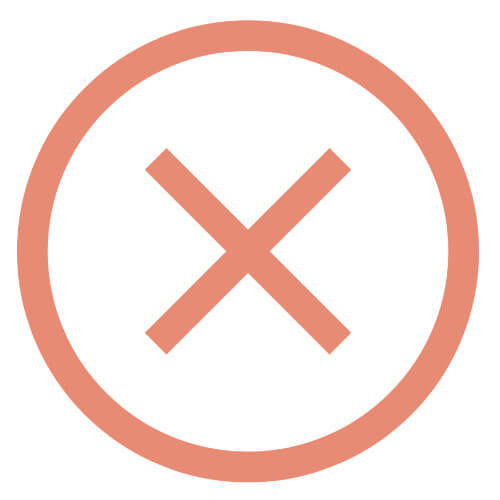

This is how the element appears:

Now that the button element is ready, we can attach it to an edge and add event listeners using the MidpointEdgeDecorator
. This decorator positions the provided element at the point of an edge that’s equidistant from both ends.
import { CanvasBuilder, BezierEdgeShape, MidpointEdgeShape } from "@html-graph/html-graph"; const canvas = new CanvasBuilder(canvasElement) .setDefaults({ edges: { shape: (edgeId) => { const baseShape = new BezierEdgeShape({ hasTargetArrow: true }); const midpoint = createRemoveEdgeButton(); midpoint.addEventListener("click", (event) => { canvas.removeEdge(edgeId); }); return new MidpointEdgeShape(baseShape, midpoint); }, }, }).build();
The final result is presented below.
When combined with connectable ports, this functionality becomes particularly useful for nocode editor interfaces.
